SRP-2007-75CCF is an ENEC approved dimmable 75w led driver with 1-10v interface and 4 channels constant current output and multi current is selectable from 250mA to 1500mA by DIP switches, which enables it to be suitable for LED lights with different current. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. It is designed with 1 channel 1-10V signal input for controlling of 4 channels of PWM output synchronously. The 75w LED driver is controlled via 1-10v control unit and can be compatible with universal 1-10v signal. 0-10v version is optional. ENEC certification ensures high safety performance of the driver to be used worldwide.
Key Features
- Dimmable LED driver, Max. output power 75W
- ENEC certification
- 4 channels constant current output, 250mA ~ 1500mA Adjustable by DIP switches
- Enable to control single color LED lighting
- Class Ⅱ power supply, full isolated plastic case
- Rubycon capacitors
- Built-in active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 87%
- Current accuracy < ±5%

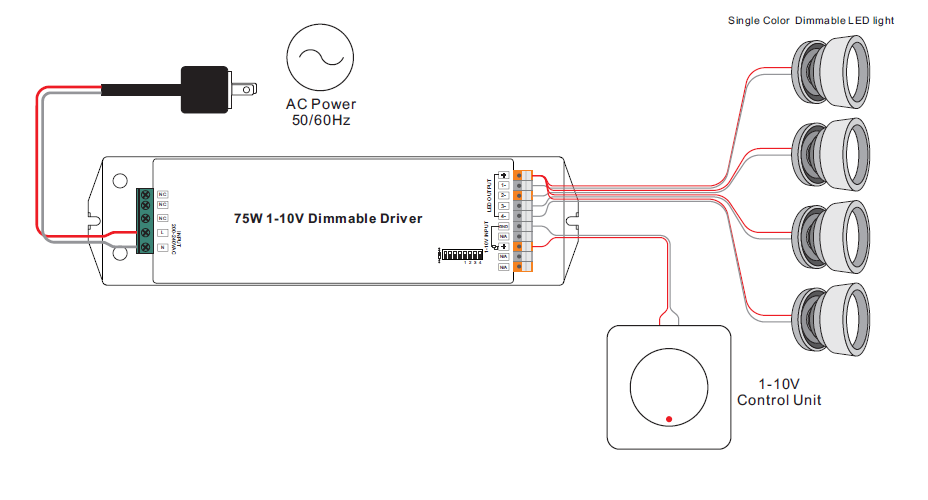

- 1 channel 1-10V signal input for controlling of 4 channels of PWM output synchronously
- 0-10v version is optional
- To control single color LED lighting
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- IP20 rating, suitable for indoor LED lighting applications
