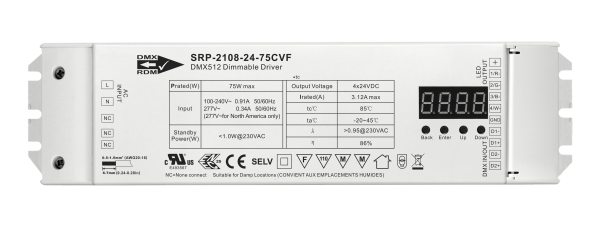

SRP-2108-24-75CVF is an UL, ENEC and TUV approved RDM enabled DMX 75w dimmable LED driver with 4 channels 24VDC constant voltage outputand 100-240VAC universal input. Power factor of the driver can be over 0.9 and efficiency is higher than 90%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. DMX channel quantity can be set as 1/2/3/4 via buttons, which enables the driver to control single color, tunable white, RGB/RGBW LED lighting. DMX addresses can be manually assigned via buttons and showed on digital display. Complying with DMX512(2008), DMX512-A and RDM V1.0 (E1.20 – 2006 ESTA Standard) protocols, this DMX driver is compatible with universal DMX consoles. UL, ENEC and TUV certification ensures high safety performance of the driver to be used worldwide.
A variety of features can be set via the visible numeric digital display and the buttons such as DMX address, DMX channel quantity, PWM output resolution (8 bit or 16 bit), PWM output frequency, GAMMA ray dimming curve value and DMX decoding mode.
DMX channel quantity can be set from 1CH to 4CH. PWM frequency can be set from 500Hz to ultra high 30KHz, which is perfect for professional film lighting. Gamma ray dimming curve value is adjustable from 0.1-9.9, and logarithmic dimming and linear dimming are optional. DMX Decoding modes are optional and enable to adjust brightness of each output channel, master brightness of all output channels and strobe effects, and default mode is dp1.1.
Key Features
- Dimmable 24V LED Driver, Max. output power 75W
- UL, ENEC and TUV certification
- 100-240VAC universal input
- 4 channels 24VDC constant voltage output
- Class Ⅱ power supply, full isolated plastic case
- Rubycon capacitors
- Built-in two stage active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 90%
- DMX interface, DMX512(2008), DMX512-A and RDM V1.0 (E1.20 – 2006 ESTA Standard) protocols, this DMX driver is compatible with universal DMX consoles
- Enable to set DMX address, DMX channel quantity, PWM output resolution (8 bit or 16 bit), PWM output frequency, GAMMA ray dimming curve value and DMX decoding mode
- DMX addresses can be manually assigned via buttons and showed on digital display
- To control constant voltage single color, tunable white, RGB/RGBW LED lighting
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- IP20 rating, suitable for indoor LED lighting applications
