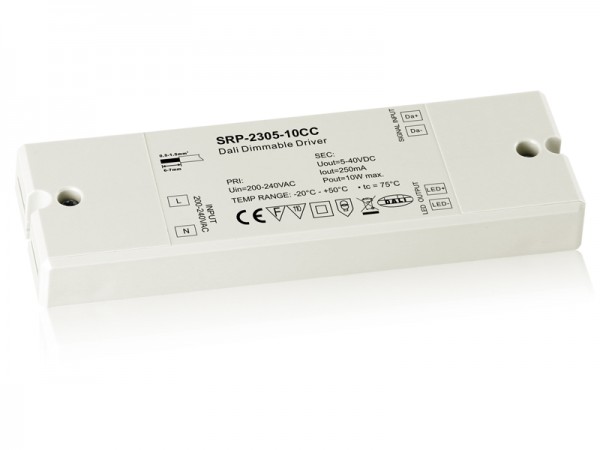

SRP-2305-10W is a 10w dimmable LED DALI driver with 1 channel constant current output and adjustable current from 100ma to 250ma by factory setting, which enables it to be suitable for LED lights with different current. Factory default is 250mA. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 80%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. DALI address can be automatically assigned by DALI masters. Complying with IEC62386-101, 102, 207, this DALI driver is compatible with universal DALI masters.
Key Features
- Dimmable LED driver, Max. output power 8W
- 1 channel constant current output, 100mA ~ 250mA Adjustable by factory setting, 250mA by default
- Class Ⅱ power supply, full isolated plastic case
- Rubycon capacitors
- Built-in active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 80%
- Complying with IEC62386-101, 102, 207, this DALI driver is compatible with universal DALI masters
- Fade time, system failure level, power on level configurable
- To switch and dim single color LED lighting
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- Error report function
- IP20 rating, suitable for indoor LED lighting applications
Download Center
To know further details of this product, please download the following user manual.
SRP-2305-10W User Manual
