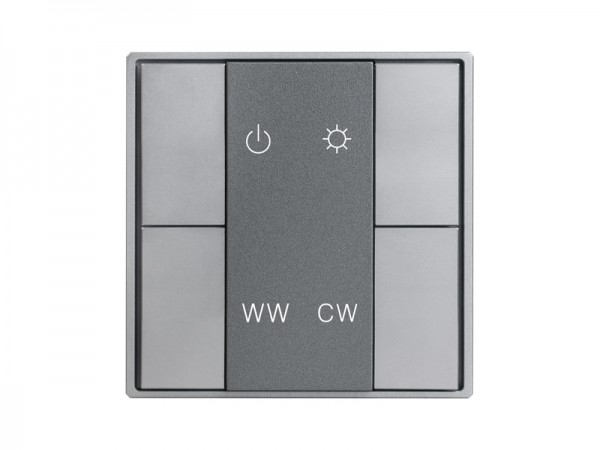

Push button DALI controller SR-2422NK4-CCT-G1 is a dual color DALI DT8 controller that controls 2 channels output (warm white and cool white) via a single DALI address. The push button controls 1 group address. The group of devices on DALI circuit to be controlled can be assigned manually by rotary switch on the back. All DALI devices on the circuit can be controlled by the panel through broadcast. The DALI panel enables dimming commands and DT8 commands to be sent to the selected group. DT8 commands enable easy color temperature adjusting for the dual color LED lights. It is compatible with universal DALI masters that support DT8 commands and controls DT8 devices. It is easy to use and no configuration by computer required. Compatible with existing standard size EU size wall box, the DALI push button controller can be wall mounted easily.
Key Features
- Push button DALI DT8 CCT controller, color type Tc
- Ultra slim and luxury design
- Material and finishing color can be customized
- With back lighting design, easy to find even in dark night
- DALI bus powered, no extra power supply required
- Each channel DALI bus can install multiple controllers
- 4 Button Design with Group Control
- Controls DT8 devices
- Controls 2 channels output (warm white and cool white) via a single DALI address
- Control 1 Group Address
- Control of All DALI Devices on the circuit through Broadcast
- Enables to select and control 1 DALI group from total 16 DALI groups
- Enables dimming commands and DT8 commands to be sent to the selected group
- DT8 commands enable easy color temperature adjusting for the dual color LED lights
- Compatible with universal DALI masters that support DT8 commands
- Enable to Set Start Group Number Manually by Rotary Switch on the back
- Easy to Use, No Configuration by Computer Required
- Easy Installation, Compatible with Existing Standard Size Frames
