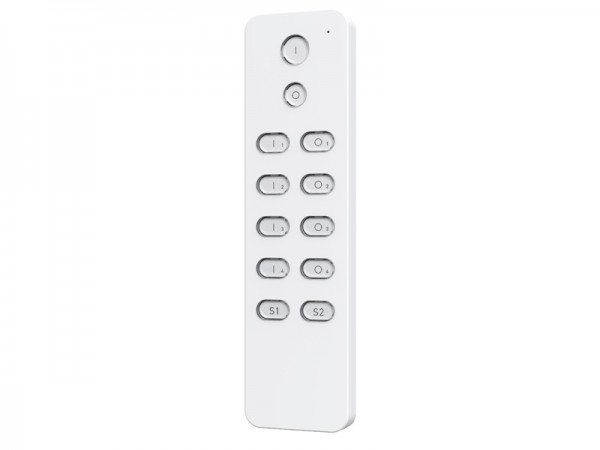

SR-ZV9001K12-DIM-Z4 is is a new single color z wave remote secondary controller which adopts latest z-wave RF Plus and Mesh network technology to switch and dim single color LED lighting. It is a universal z wave slave and can be added to z-wave network or removed from z-wave network by zwave primary (master) controllers or gateway. The remote controller is powered by a cell lithium battery. The wireless dimmer is compatible with single color z wave device SR-ZV9101FA-DIM and different frequencies are available for different countries or areas. The signal transmit distance can be up to 30m. It supports 5 groups for associations, a lifeline group association to primary (master) controller and 4 groups association to devices, the groups association to devices support maximum 5 Z-wave devices per group. The z-wave remote also enables to save and recall 2 scenes. It is easy to fasten the remote controller on the magnetic bracket.
Key Features
- Z-wave slave controller
- Source-routed Mesh Network Architecture
- Each device works as a node
- All Nodes Are Transceivers
- Each Z-wave Network Allows Up to 232 Devices
- Actively route around and circumvent obstacles or radio dead spots
- Wireless Synchronization to Drastically Increase Control Distance
- Devices can communicate to one another by using intermediate nodes
- Added to z-wave network by z-wave masters or gateway
- Removed from z-wave network by z-wave masters or gateway
- Compatible with universal z-wave masters/gateway
- Supports 1 lifeline group association to master controller
- Supports 4 groups association to z-wave devices, maximum 5 devices per group
- Enables to save and recall 2 scenes
