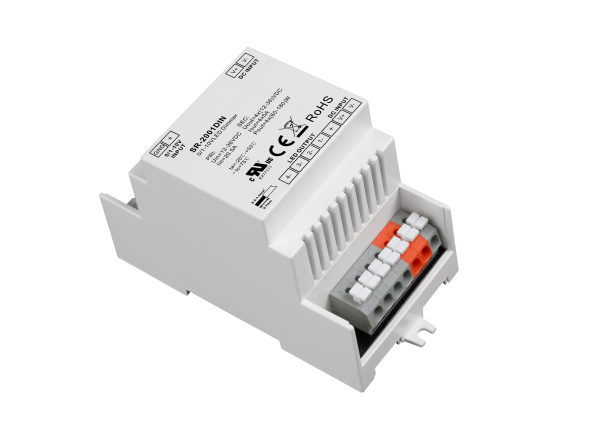

The SR-2001DIN series is a din rail mounted 0/1-10V LED dimmer which receives standard 1-10V dimming signal and outputs PWM signal. The 1-10V dimmer is designed with 1 channel 1-10V input and 4 channel PWM output and available in constant voltage. 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes. 256 levels of grey scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering. The waterproof LED dimmer can be used in outdoor and damp environment.
Key Features
- Din rail mounted 0/1-10V LED dimmer
- Analog dim driver, receives standard 1-10V dim signal input
- 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes
- 1 channel 1-10V input and 4 channel PWM output
- Constant current and constant voltage versions both available
- 256 levels of grey scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering
- To work with power repeater to expand output unlimitedly
Download Center
To know further details of this product, please download the following user manual.
SR-2001DIN User Manual
