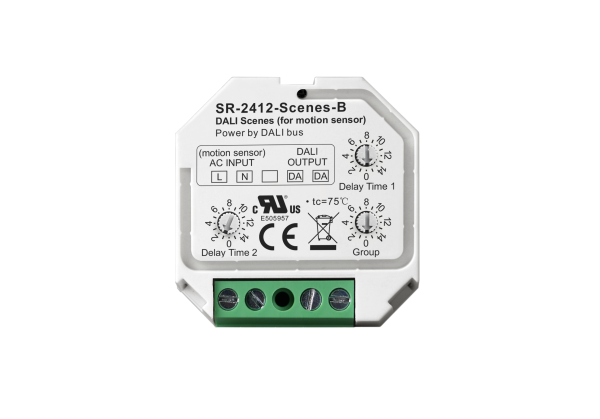

The DALI scene controller SR-2412-Scenes-B is master controller that outputs DALI signal and enables scene selection command to be sent to the DALI line. The scene command is triggered by a motion sensor that connected the controller. It is compatible with universal motion sensor types such as microwave, pir etc.
Up to 3 predefined Scenes can be recalled, 1st Scene will be triggered by the motion sensor when the presence of human beings is detected within the detection range, 2nd Scene will be triggered by the motion sensor when the absence of human beings is detected within the detection range, and 3rd one will be triggered when a delay time is elapsed. A rotary switch is used to set the start scene number from total 16 (0-15) predefined DALI scenes. A rotary switch on the back is used to set Delay Time, and total 16 different delay times (0-15) can be selected from 0S to infinity.
This DALI scene controller enables Group selection commands to be sent to One Group of devices on the DALI circuit for Scene control. A rotary switch on the back is used to select Group you would like to control and set the starting Group number, and total 16 Groups (0-15) can be selected. It control all devices on the DALI line through broadcast.
Key Features
- DALI Scene Controller Triggered by Motion Sensor
- DALI Bus Powered, DALI Signal Output
- Compatible with Universal Motion Sensor Types (PIR, Microwave and so forth)
- DALI bus powered
- Control 1 DALI group and 3 DALI scenes
- Easy to Select and Control a Designated DALI Group （0-15）
- Controls all Devices through Broadcast
- Easy to Select and Recall 3 Designated Scenes (0-15)
- 16 Delay Times Selectable from 0S to Infinity
- Compatible with Universal DALI System
- Rotary switches for setting the designated Group, Scenes and Delay Time
