The SR-ZG9100A is an innovative in wall smart switch with ZigBee control interface. The AC switch is designed with 100-240VAC wide input and output, innovative self adaptive two wire connection (no neutral wire) or three wire connection (with neutral wire) enables the switch to be a perfect solution for both retrofits and new installations, 1 channel and maximum 1000W output for resistive loads and 300W for capacitive loads. The ZigBee AC switch supports resistive loads and capacitive loads, and enables to control ON/OFF of connected load. The AC switch can be compatible with universal ZigBee coordinator or gateway controller to be paired to the network. It is controllable from your ZigBee gateway interface or remote controllers that are added to the network and bind with the switch.
The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes directly without zigbee hub or gateway.
Key Features
- ZigBee in-wall smart switch based on latest ZigBee 3.0 protocol
- Zigbee certified

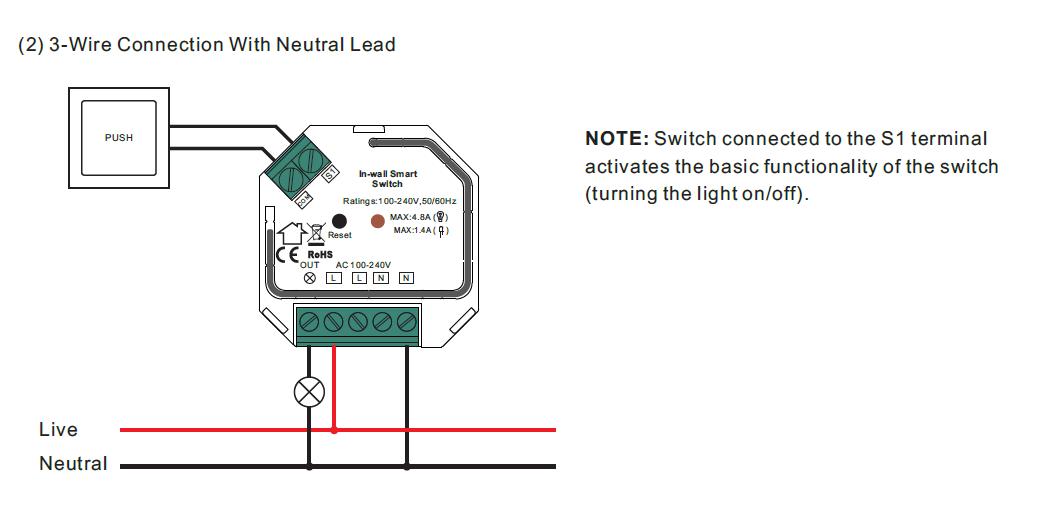

- Innovative self adaptive two wire connection (no neutral wire) or three wire connection (with neutral wire)
- 100-240VAC input and 100-240VAC output
- 1 channel, maximum 1000W output for resistive loads and 300W for capacitive loads
- Supports resistive loads and capacitive loads, enables to control ON/OFF of connected load
- Compatible with universal ZigBee coordinator or gateway controller
- Controllable from your ZigBee gateway interface or remote controllers that are added to the network and bind with the switch
- Can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink
- Supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes
- Can be controlled by push switch
- Supports find and bind mode to bind a ZigBee remote
- Input and Output with Screw Terminals, Safe and Reliable
- Mini Size, Easy to be Installed into A Standard 86*86mm Wall Box
Download Center
To know further details of this product, please download the following user manual.
SR-ZG9100A User Manual
