The SR-2102BWP is a waterproof DMX512 decoder with IP67 rating, which enables the decoder to be used in outdoor and damp environment. 4 channel output with constant current and constant voltage versions both available enables the DMX512 decoder to work with different types of LED lamps. Maximum output can be up to 8A per channel. DMX address can be set freely and shown on the numeric digital display.
Key Features
- Waterproof DMX512 decoder with IP67 rating and stainless steel shell, suitable for outdoor and damp environment
- DMX signal output, comply with standard protocol DMX512(1990), compatible with DMX masters from international suppliers
- DMX512 compliant control interface, DMX address can be set freely and shown on the digital numeric display
- Compatible with our DMX wall mounted controllers (single color, dual color, RGB) to achieve many different lights dimming and controlling effects
- Constant voltage 5A or 8A per channel, constant current 350mA or 700mA per channel
- To work with power repeater to expand output unlimitedly
Specifications
Part No. | Input Voltage | Output Current | Output Power | Output Type | Dimension (mm) |
---|---|---|---|---|---|
SR-2102B(WP) | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 74*181*38 |
SR-2112B(WP) | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 74*181*38 |
SR-2114B(WP) | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 74*181*38 |

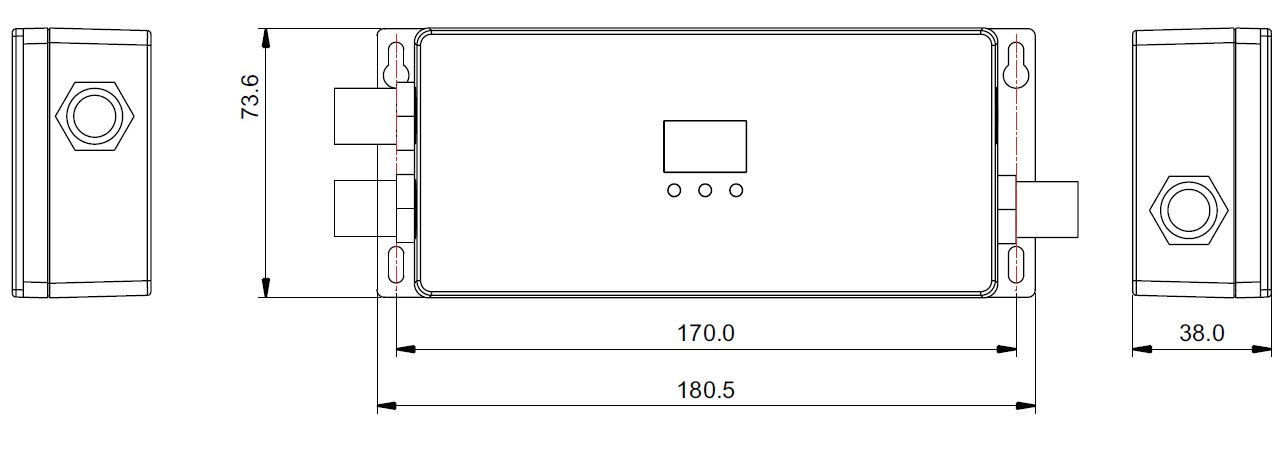

Product Dimension

Wiring Diagram

Coming soon
Download Center
To know further details of this product, please download the following user manual.
SR-2102BWP User Manual
