- Waterproof DALI Dimmer SR-2302WP
The DALI Dimmer SR-2302WP is an IP67 rating waterproof dimming controller which complies to standard DALI protocol with both constant current and constant voltage versions available. The DALI address can be manually assigned and shown on the numeric digital display or automatically assigned by master controllers. 1 DALI address is available for 4 channels to work synchronously. 0%-100% smooth dimming can be achieved by the DALI dimmer via logarithmic dimming, which is perfect for human's vision. The DALI controller can be used for outdoor lighting projects.
Key Features
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-2302B(WP) | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 74*181*38 |
SR-2312B(WP) | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 74*181*38 |
SR-2314B(WP) | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 74*181*38 |

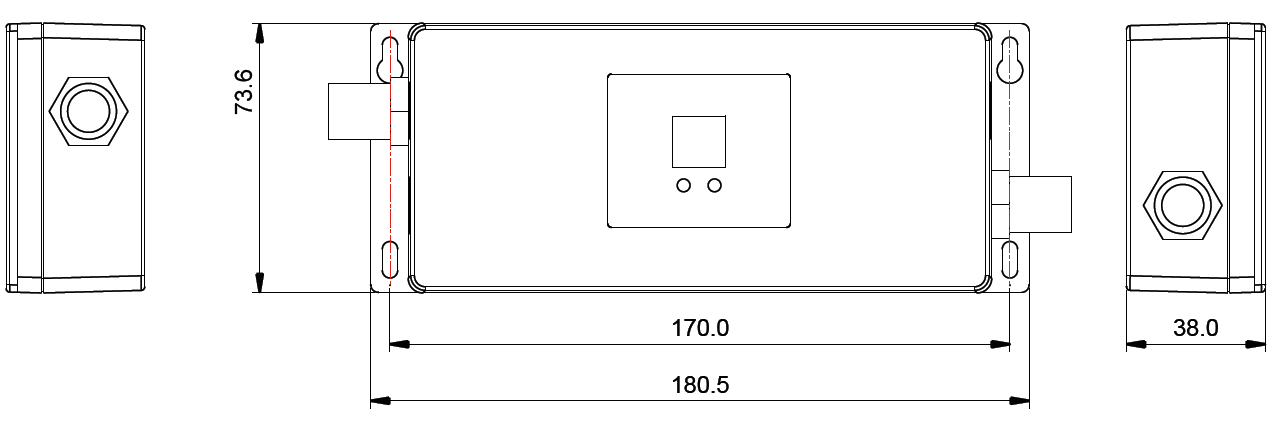

Product Dimension

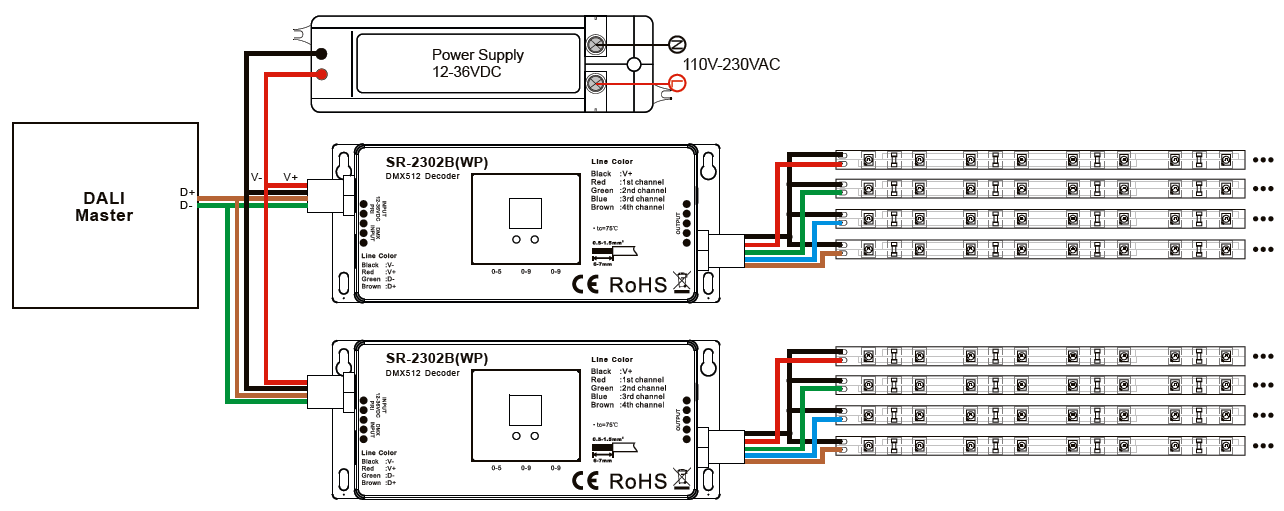

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2302WP(EU) User Manual
SR-2302WP(US) User Manual
