- Waterproof DALI Dimmer Controller SR-2303BWP
The DALI Dimmer SR-2303BWP is a waterproof 4 channel output DALI LED dimmer control which complies with standard DALI protocol with constant voltage output available to control single color LEDs. The DALI address can be manually assigned and shown on the numeric digital display or automatically assigned by master controllers. 4 DALI addresses are available for 4 channels to work separately. 0%-100% smooth dimming can be achieved by the DALI dimmer via logarithmic dimming, which is perfect for human's vision. The waterproof DALI dimmer controller is IP67 rating and can be used for outdoor projects.
Key Features
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-2303BWP | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 74*181*38 |

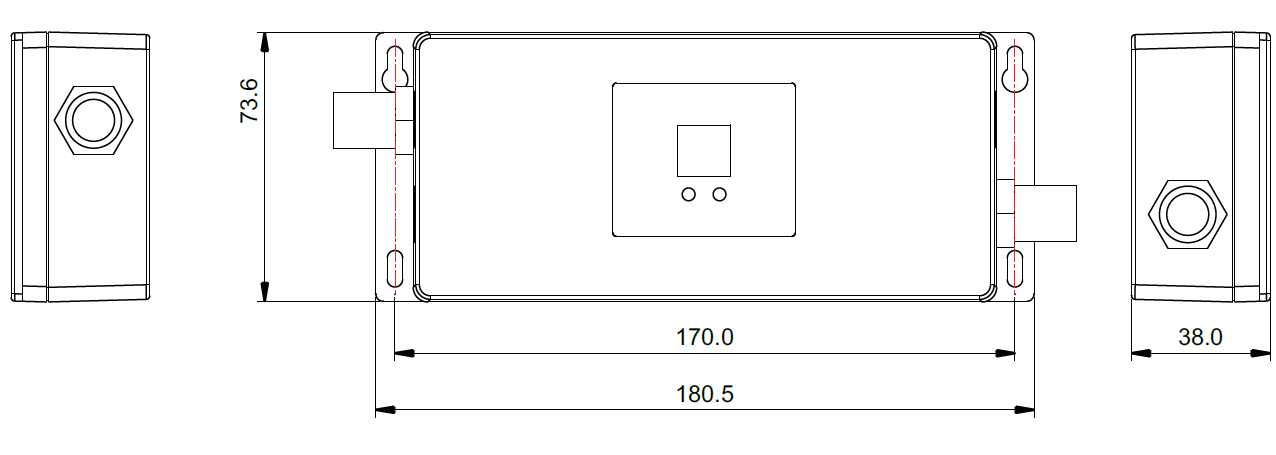

Product Dimension

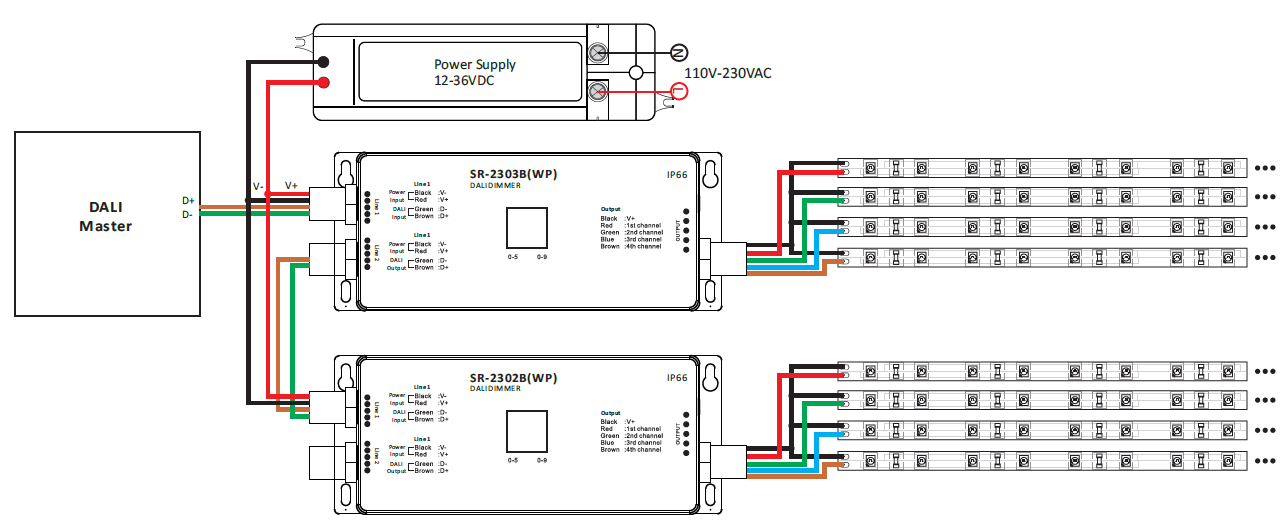

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2303BWP(EU) User Manual
SR-2303BWP(US) User Manual
