- Din Rail Mounted DALI Controller SR-2303DIN
The DALI controller SR-2303DIN is a din rail mounted 4 channel output DALI LED controller which complies with standard DALI protocol with constant voltage output. The DALI address can be manually assigned and shown on the numeric digital display or automatically assigned by master controllers. 4 DALI addresses are available for 4 channels to work separately. 0%-100% smooth dimming can be achieved by the DALI dimmer via logarithmic dimming, which is perfect for human's vision.
Key Features
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-2303DIN | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 65*106*53 |

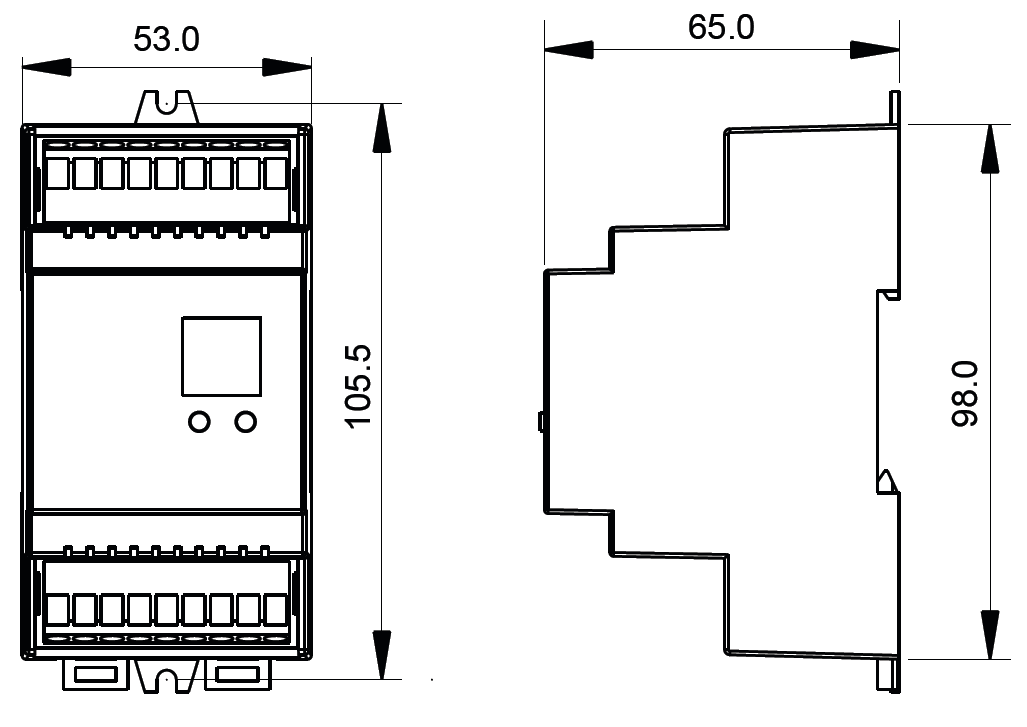

Product Dimension

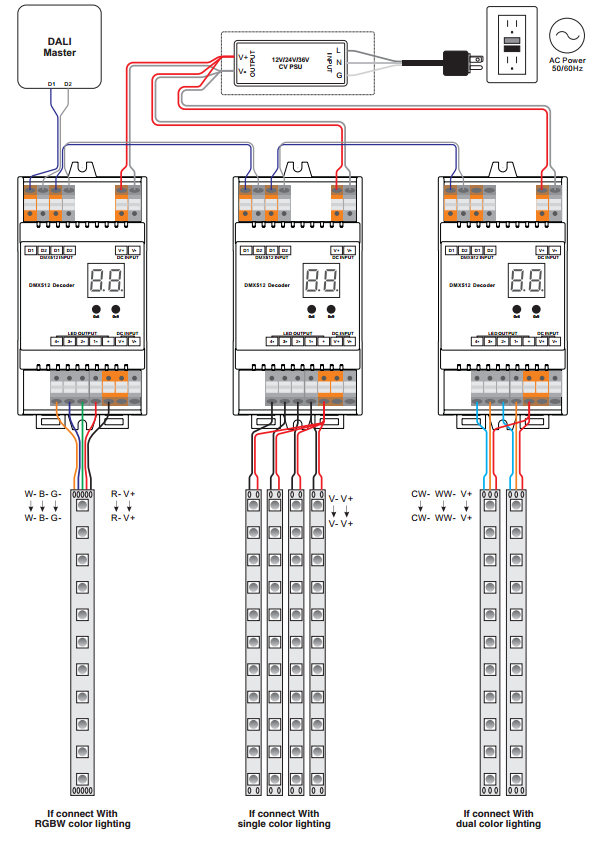

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2303DIN User Manual
