The DALI master SR-2400TG is a touch control DALI dimmer switch which controls 4 DALI groups on the DALI line and adopts high strength and ultra sensitive tempered glass panel to offer smooth, accurate and fast switch and dimming functions without any flickering, the dimmer switch complies to standard DALI protocol and can be compatible with DALI products from other international corporations. The DALI master can detect DALI bus with each channel DALI bus installing multiple dimming controllers. It enables to select different DALI group addresses from total 16 groups by rotary switches on the back for control. Up to 4 DALI groups can be selected for switch and dimming control. The dimmer switch is easy to install in the wall with a standard dimension of 86*86mm. Compatible with most of our DALI slave controllers which are available in both constant voltage and constant current versions, the DALI touch dimmer is capable of controlling different types of LED lighting.
Key Features
- Comply to DALI standard protocol IEC60929 and in compliance with DALI products from other international incorporation.
- Touch interface operation design, easy to use.
- With bus detective function, one channel DALI bus can install multiple dimming controllers.
- No external power supply which is provided by DALI bus. Consumption current is 4mA.
- It enables to select different DALI group addresses from total 16 groups by rotary switches on the back for control.
- Up to 4 DALI groups can be selected for switch and dimming control.

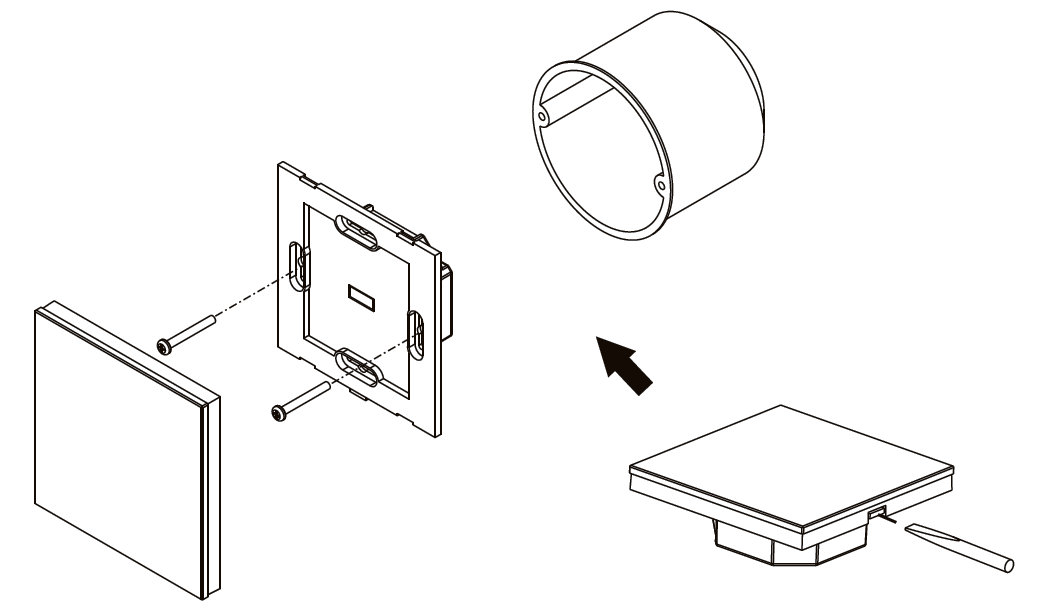

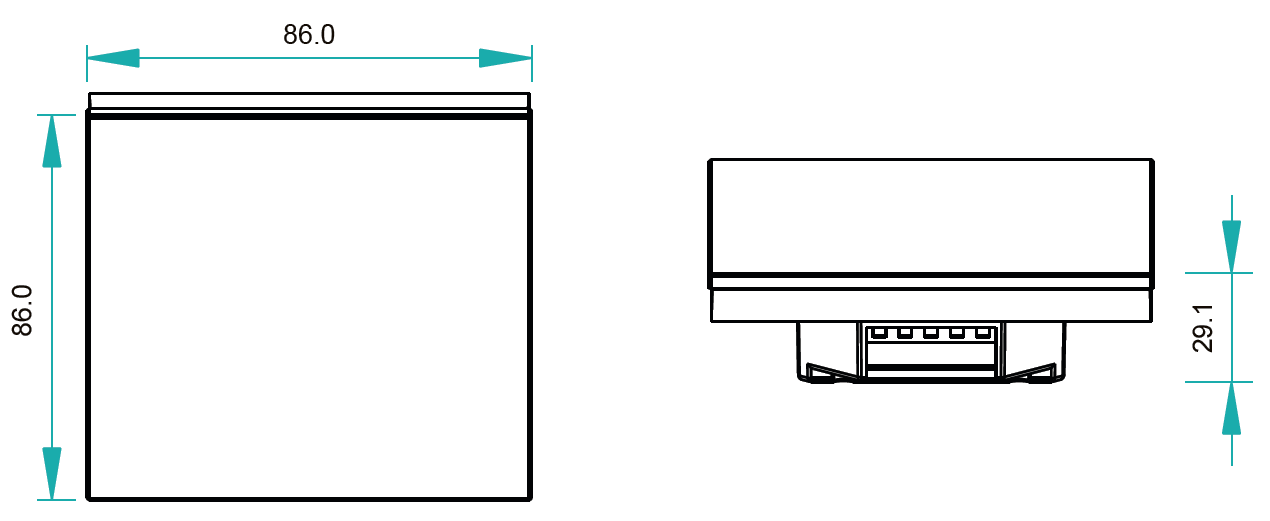

- Standard dimension design in 86*86mm, easy to install in the wall.
Download Center
To know further details of this product, please download the following user manual.
SR-2400TG User Manual
