- RF RGB Controller SR-1004 Series with Remote SR-2808
The RF RGB LED controller SR-2808 is a handheld remote controller with RF signal to control RGB LEDs and create stunning colors and changing patterns. With a compact size and PC material, this controller is easy to use and comfortable to touch. Smooth adjustment of RGB and changing patterns can be achieved by buttons. Built-in 10 changing modes can be available and changing speed is adjustable with 10 levels. Each controller can control 1 zone with endless receivers synchronously.
Key Features
Part No. | Operation Voltage | Operation Fequency | Dimension (mm) |
---|---|---|---|
SR-2808 | 3VDC | 434MHz/868MHz | 40*136.5*11.5 |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1004TA | 12-36VDC | 3CH, 3A/CH | 108-324W | Constant Voltage | 30*160*19 |
SR-1004TA3 | 12-36VDC | 3CH, 0.35A/CH | 12.6-37.8W | Constant Current | 30*160*19 |
SR-1004TA7 | 12-36VDC | 3CH, 0.7A/CH | 25.2-75.6W | Constant Current | 30*160*19 |
SR-1004FA | 12-36VDC | 3CH, 5A/CH | 180-540W | Constant Voltage | 46*178*18 |
SR-1004FA3 | 12-36VDC | 3CH, 0.35A/CH | 12.6-37.8W | Constant Voltage | 46*178*18 |
SR-1004FA7 | 12-36VDC | 3CH, 0.7A/CH | 25.2-75.6W | Constant Voltage | 46*178*18 |

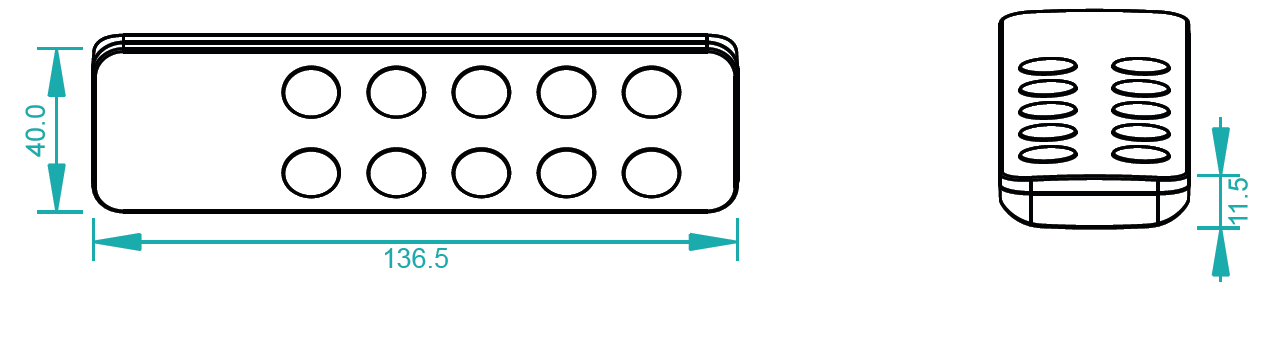

Product Dimension

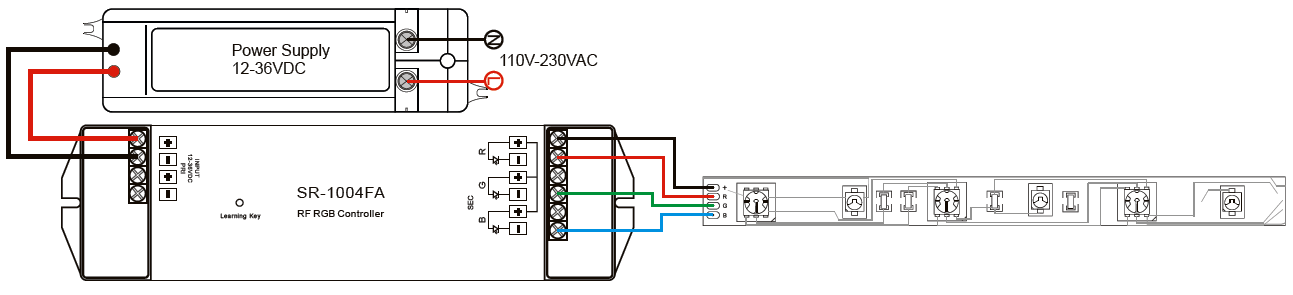

Receiver Wiring Diagram for Single Unit

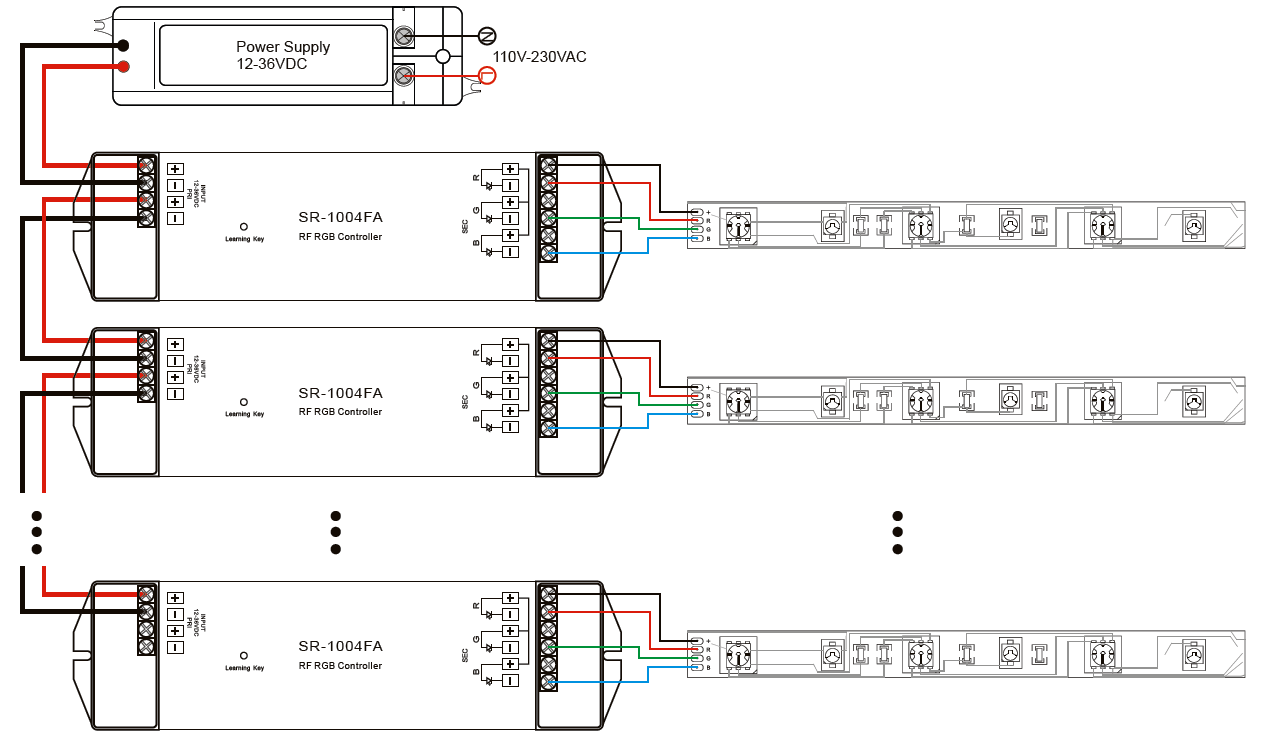

Receiver Wiring Diagram for Multiple Units
Download Center
To know further details of this product, please download the following user manual.
SR-2808 User Manual
