The SR-2104EA is a constant voltage DMX512 decoder with 3 channel or 4 channel output selectable, 8A per channel output and available in 12VDC, 24VDC and 36VDC output, which can be switched between slave mode and master mode by the jumper. Once under slave mode, it is a standard 3 channel or 4 channel DMX decoder. 3 channel output or 4 channel output can be selectable. Once under master mode, 4 channels can be dimmed separately by external push button and the DMX master can enter the fading operation mode and adjust changing speed. DMX address can be set freely and shown on the numeric digital display.
Key Features
- Constant voltage DMX512 decoder with 3 channel or 4 channel output selectable, 8A per channel output and available in 12VDC, 24VDC and 36VDC output
- DMX512 compliant control interface, DMX address can be set freely and shown on the digital numeric display
- Master mode and slave mode can be freely switched by jumper
- Standard 3 channel or 4 channel DMX decoder under slave mode
- Under master mode, 4 channels can be dimmed separately by external push button and the DMX master can enter the fading operation mode and adjust changing speed
- Three channel / four-channel output selectable
- To work with power repeater to expand output unlimitedly
Specifications
Part No. | Input Voltage | Output Current | Output Power | Output Type | Dimension (mm) |
---|---|---|---|---|---|
SR-2104EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |

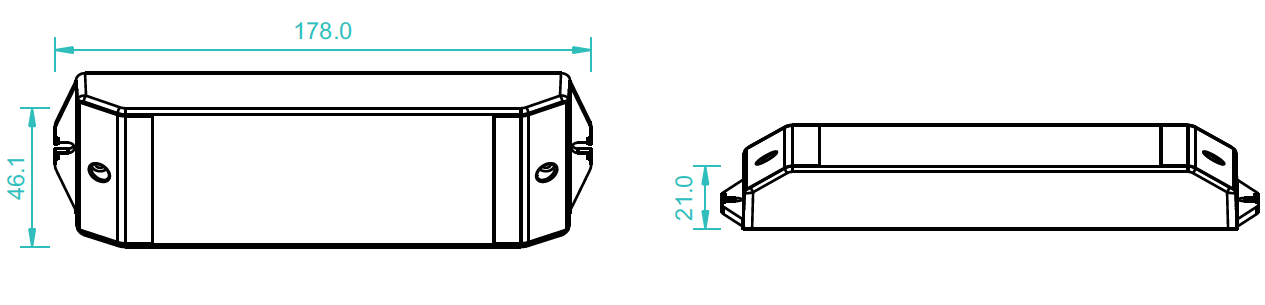

Product Dimension

Wiring Diagram

Download Center
To know further details of this product, please download the following user manual.
SR-2104EA User Manual
