Rotary dimmer master SR-2202 is a DMX512 dimmer controller which complies with standard protocol DMX512(1990) and offers both switch on/off and smooth brightness dimming functions for single zone. Designed with easy-to-use interface and rotary knob, the DMX512 dimmer switch offers accurate smooth dimming and switching on/off functions without any flickering. Designed with bus detective function, each channel DMX512 bus can install multiple dimming controllers. Smooth dimming from 0.1%-100% without any flickering really does good to human eyes.
Key Features
- Complies with standard protocol DMX512(1990) and in compliance with DMX512 products from other international suppliers
- Rotary encoder operation design, easy to use.
- With bus detective function, each channel DMX512 bus can install multiple dimming controllers.
- Switch on/off lighting slowly without any flickering
- Dimming range from 0.1%-100%
- Italian/Australian, US wall mounted size available as well

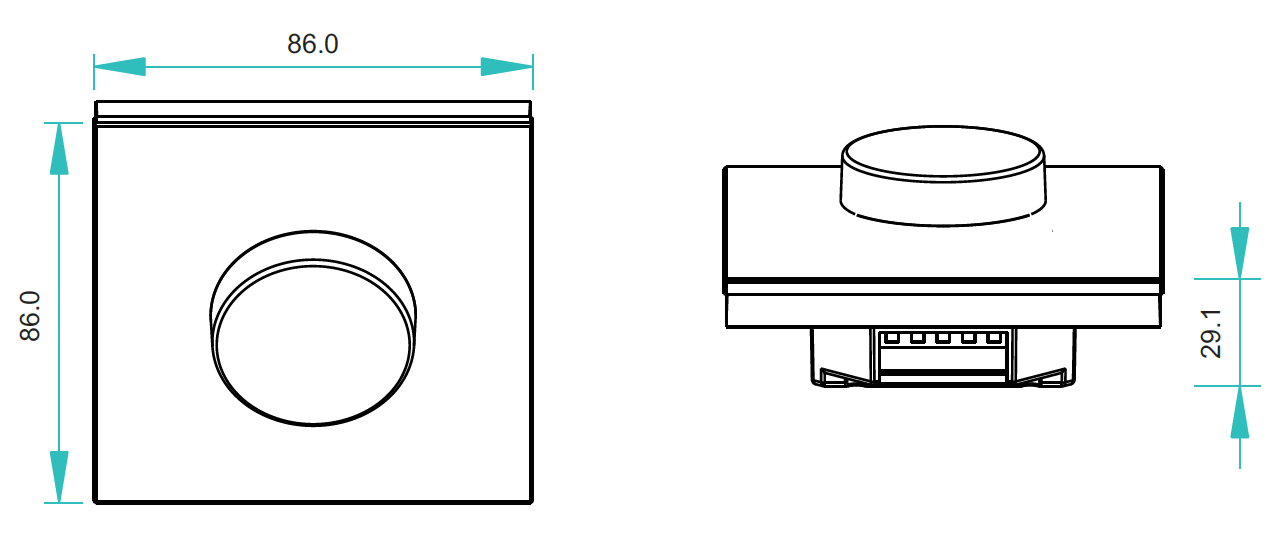

- Standard dimension design in 86*86mm
Download Center
To know further details of this product, please download the following user manual.
SR-2202 User Manual
