DMX512 CDW Dimmer Master SR-2201

CDW DMX512 master SR-2201 is a full touch controller designed in accordance with standard protocol DMX512(1990) and offers fast and accurate color temperature adjustment and independent brightness dimming of natural white, warm white and cold white with unique design touch color wheel. Designed with touch color wheel, the DMX512 controller can adjust color temperature and brightness for all white LEDs smoothly and accurately. The DMX controller can control 1 zone with endless decoders in each zone. 6 default setting colors mixed by warm white, natural white and cool white are available and DMX master enables to save 6 colors which will cover the default setting ones. Independent smooth dimming of each white channel enables the DMX master to achieve millions of colors. Italian/Australian and American size are optional besides standard 86*86mm size.

Key Features

• Ultra sensitive high strength glass touch panel with touch color wheel
• DMX signal output, complies with standard protocol DMX512(1990), and compatible with DMX decoders from any other suppliers
• Smooth and accurate color temperature adjustment by touching the color wheel
• 1 zone DMX wall mounted master
• 6 default setting colors mixed by warm white, natural white and cool white are available
• Enables to save 6 colors which will cover the default setting ones
• With bus detective function, each channel DMX512 bus can install multiple dimming controllers

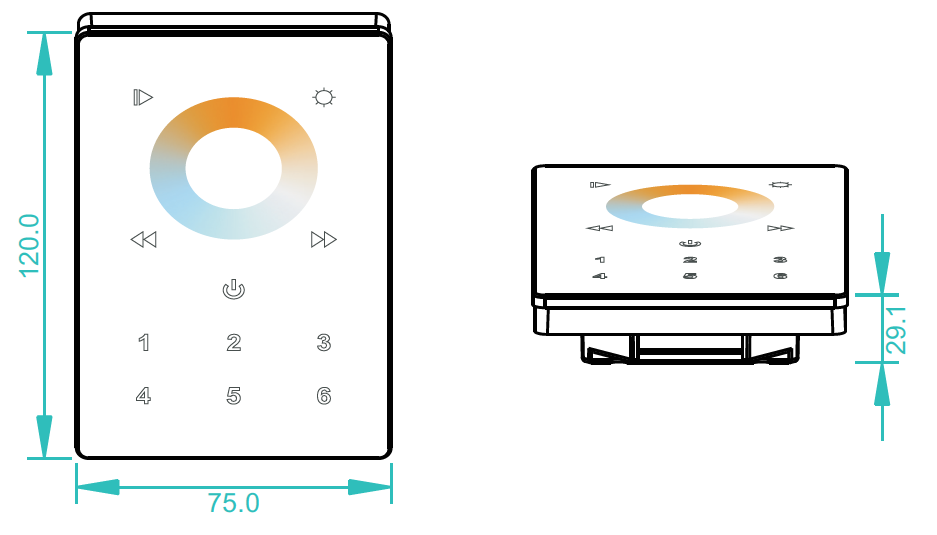

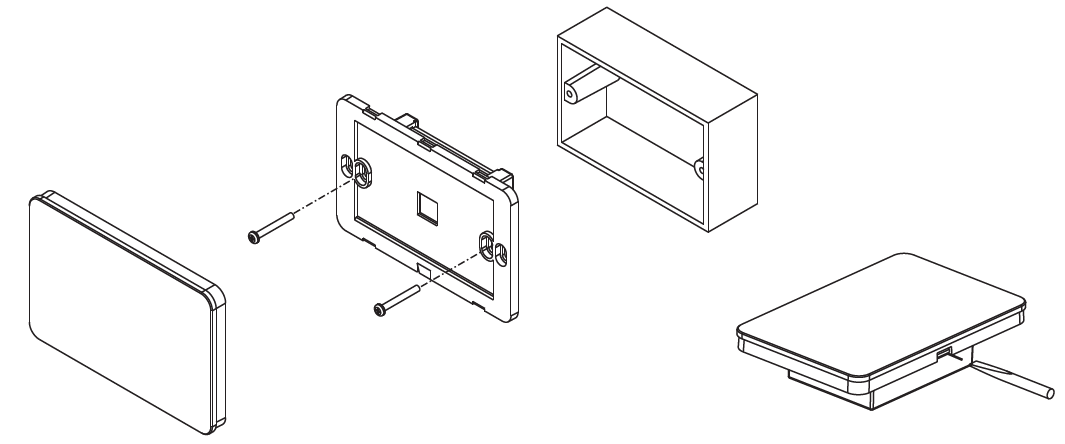

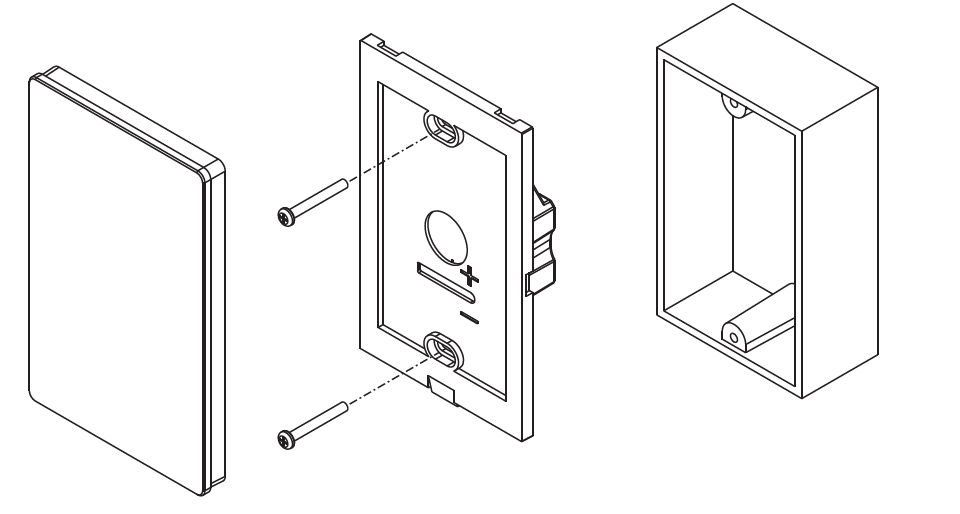

• Easy to install with standard 86*86mm box size
• Italian/Australian, American size optional
