- Din Rail Mounted DMX512 Decoder SR-2103DIN
The SR-2103DIN is a constant voltage DMX512 decoder with 3 channel or 4 channel output selectable and 5A per channel output and available in 12VDC, 24VDC and 36VDC output, which can be switched between DMX decoder mode and stand-alone mode. Stand-alone mode and DMX512 decoder mode can be freely switched by buttons. Under stand-alone mode, it can be controlled by manual buttons with its built-in programs instead of DMX signal. 3 channel output or 4 channel output can be selectable. DMX address can be set freely and shown on the numeric digital display.
Key Features
Part No. | Input Voltage | Output Current | Output Power | Output Type | Dimension (mm) | Remarks |
---|---|---|---|---|---|---|
SR-2103DIN | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 65*106*53 | Stand-alone |

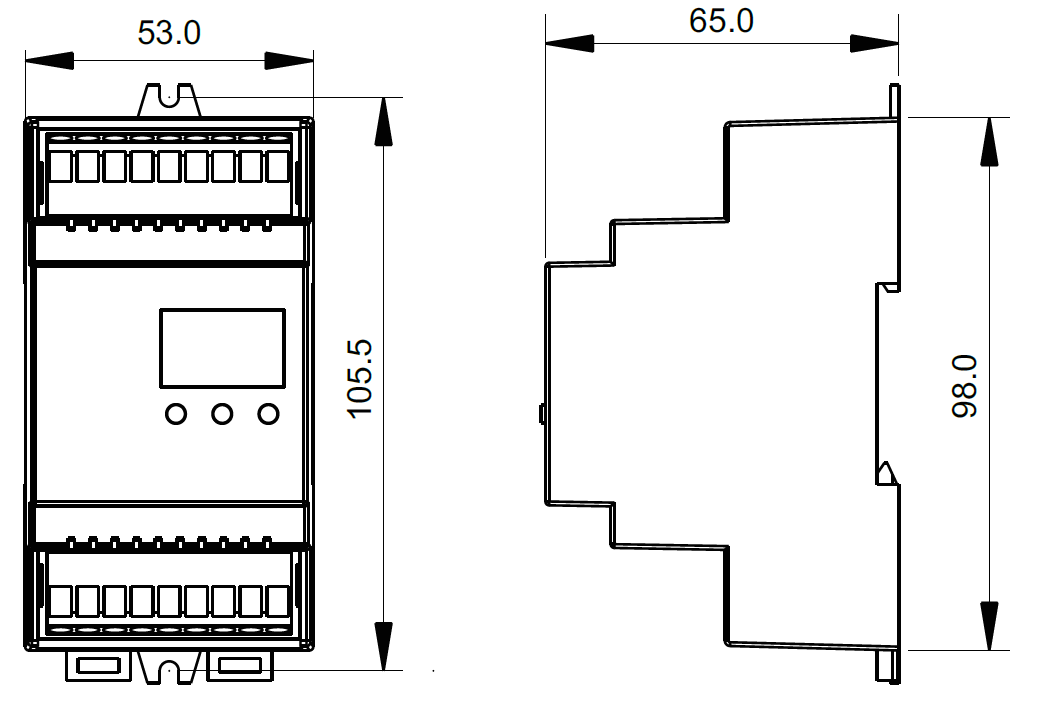

Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2103DIN User Manual
