DALI Touch Dimmer Switch SR-2300TS-DIM

The SR-2300TS-DIM is a touch control dimmer switch with DALI output which complies to standard DALI protocol to dim and switch 4 light zones. Each DALI bus can install multiple dimmer switches. The high strength tempered glass panel offers smooth dimming and switch functions without any flickering. The LED dimmer complies to standard DALI protocol and can be compatible with DALI products from other international corporations. The DALI master can control up to 4 zones with 3 scenes saved for each zone. Available in standard European size and US size as well, the dimmer switch can be installed easily. Compatible with most of our DALI slaves that available in constant voltage and constant current versions, the DALI touch dimmer switch can control different types of LED lighting.

This DALI controller is available with both 100-240VAC input and 12-24VDC input versions. AC input version is designed with built-in 100mA DALI power supply to power up to 50 DALI ECG and it can also be powered by DALI bus while not connected to AC mains. Max. 100 DALI ECG can be controlled by 4 AC input DALI touch panels via broadcast on a control circuit with 2 connected to AC mains and 2 powered by DALI bus.

Key Features

• Comply to DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.
• Touch interface operation design, easy to use.
• One channel DALI bus can install multiple dimming controllers.
• 12-24VDC input and 100-240VAC input versions optional.
• AC input version with built-in 100mA DALI power supply to power up to 50 DALI ECG.
• AC input version can also be powered by DALI bus while not connected to AC mains.
• Max. 100 DALI ECG can be controlled by 4 AC version DALI panels via broadcast on a control circuit with 2 connected to AC mains and 2 powered by DALI bus.
• Up to 4 light zones for switch and dimming control. Each zone can control 1 DALI address.
• Enable to set starting DALI address and control designated DALI addresses by rotary switches on the back
• Can save 3 scenes.

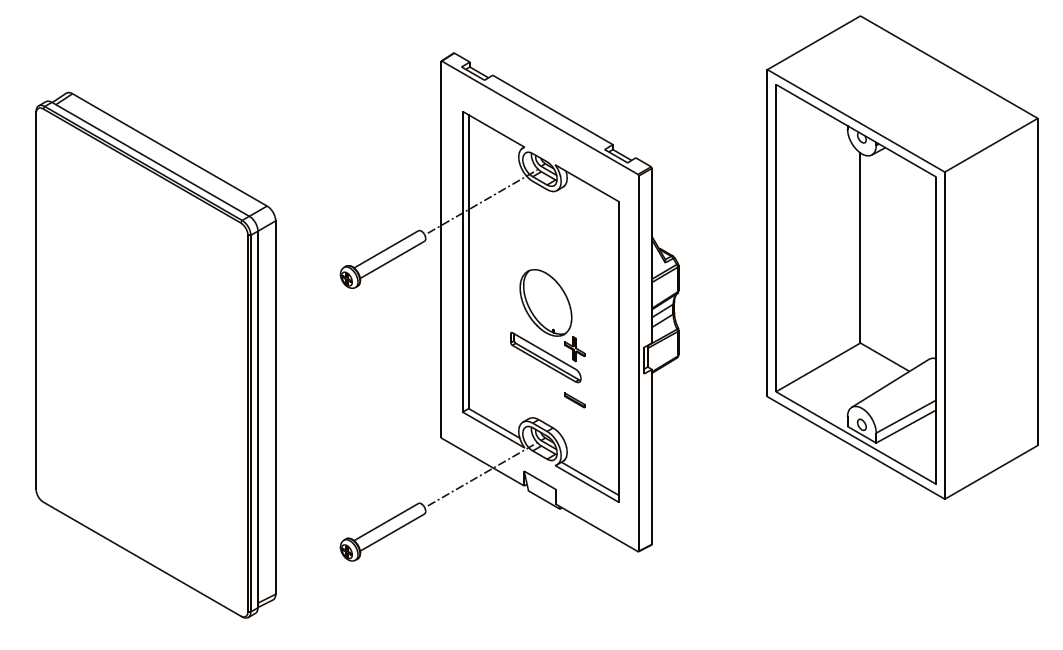

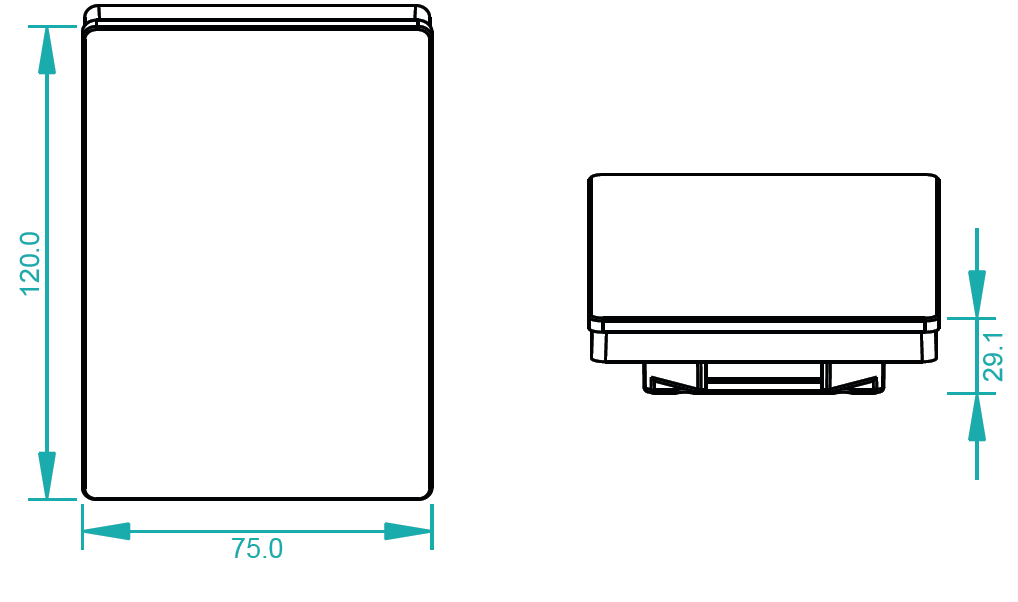

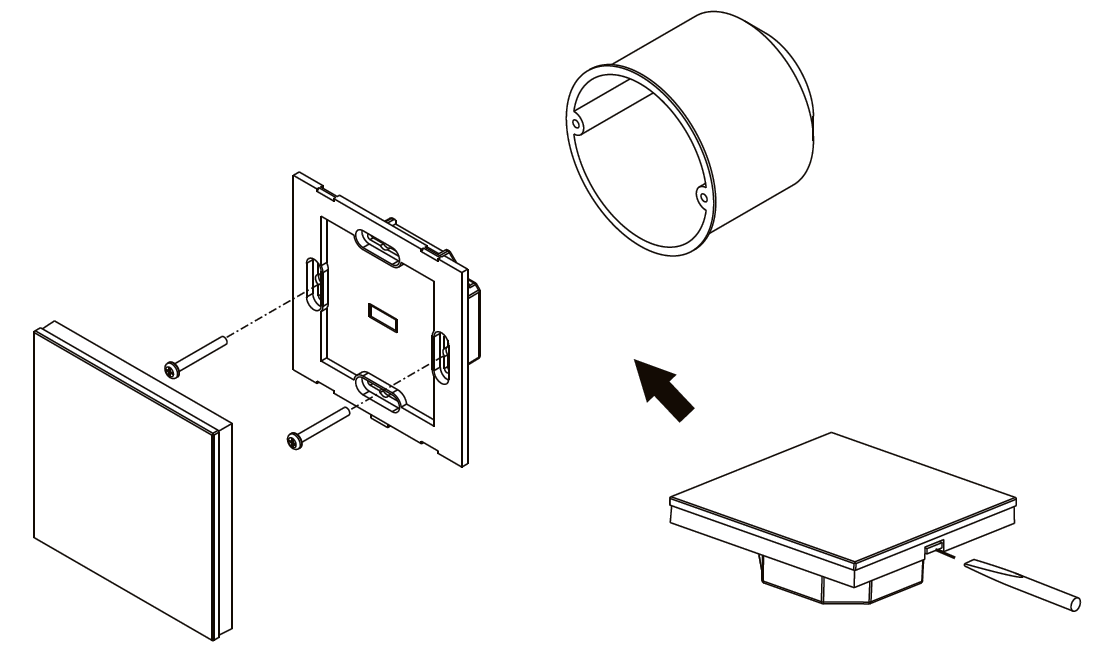

• Available in standard European size and US size as well
