- DALI Dual Color Touch Controller SR-2300NTR-CCT-EU (DT8)
Product Description
This DALI Dual Color Touch Sensitive Controller has glass interface, and both white and black are available. This control complies DALI standard protocol IEC 62386-102, IEC 62386-207, IEC 62386-209 and in compliance with DALI products from other international incorporation. Besides, this device enables to control 1 DALI Group and 4 DALI Scenes, set start DALI group number (0-15) and scene number (0-15) by rotary switches on the back, and support DT8 devices. Its color temperature can be adjusted according to DALI specifications of Device Type 8 and Color Type Tc, and each DT8 device is controlled via a single DALI address.
• Touch sensitive
• Glass interface (white & black)
• Comply to DALI standard protocol IEC 62386-102, IEC 62386-207, IEC 62386-209 and in compliance with DALI products from other international incorporation
• Enable to control 1 DALI Group and 4 DALI Scenes
• Enable to set start DALI group number (0-15) and scene number (0-15) by rotary switches on the back
• Support DT8 devices
• Color temperature adjustment according to DALI specifications of Device Type 8, Color Type Tc
• Each DT8 device is controlled via a single DALI address
Specifications
Part No. |
Power Supply |
Output Signal |
Power consumption |
DALI consumption |
Size (LxWxH) |
---|---|---|---|---|---|
SR-2300NTR-CCT-EU (DT8) |
12-24VDC |
DALI signal |
< 20 mA |
4 mA | 86x86x29.1mm |

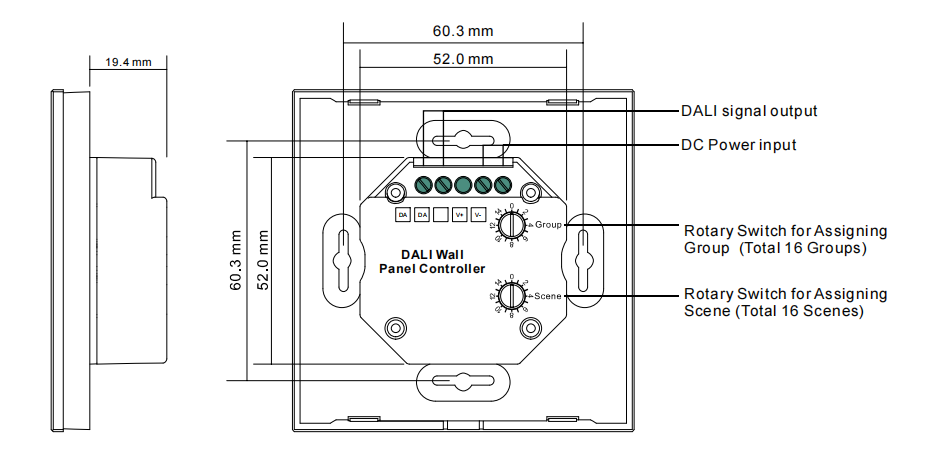

Product Dimension

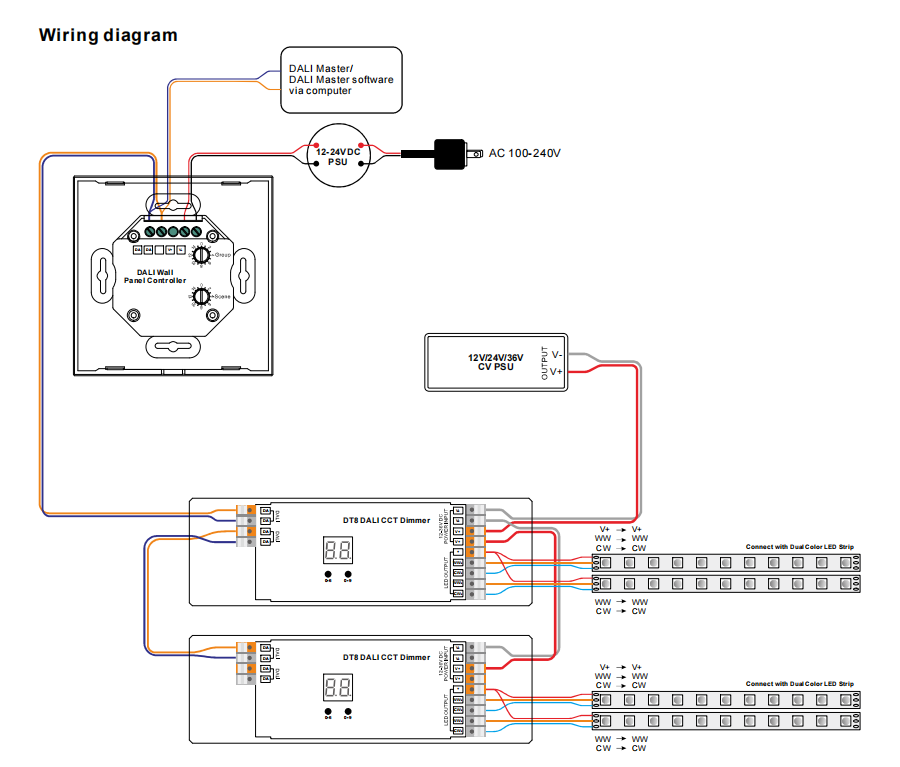

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2300NTR-CCT-EU-DT8-Instruction.pdf
