Constant Voltage DMX512 Decoder SR-2103FA

The SR-2103FA is a constant voltage DMX512 decoder with 3 channel or 4 channel output selectable and 5A per channel output and available in 12VDC, 24VDC and 36VDC output, which can be switched between DMX decoder mode and stand-alone mode. Once under stand-alone mode, the DMX master can adjust brightness of each channel and enter the fading operation mode. 3 channel output or 4 channel output can be selectable. DMX address can be set freely and shown on the numeric digital display.

Key Features

• Constant voltage DMX512 decoder with 3 channel or 4 channel output selectable and 5A per channel output, available in 12VDC, 24VDC and 36VDC output
• DMX512 compliant control interface, DMX address can be set freely and shown on the digital numeric display
• Stand-alone mode and DMX512 decoder mode can be freely switched by buttons
• Once under stand-alone mode, the DMX master can adjust brightness of each channel and enter the fading operation mode
• Three-channel / Four-channel output selectable

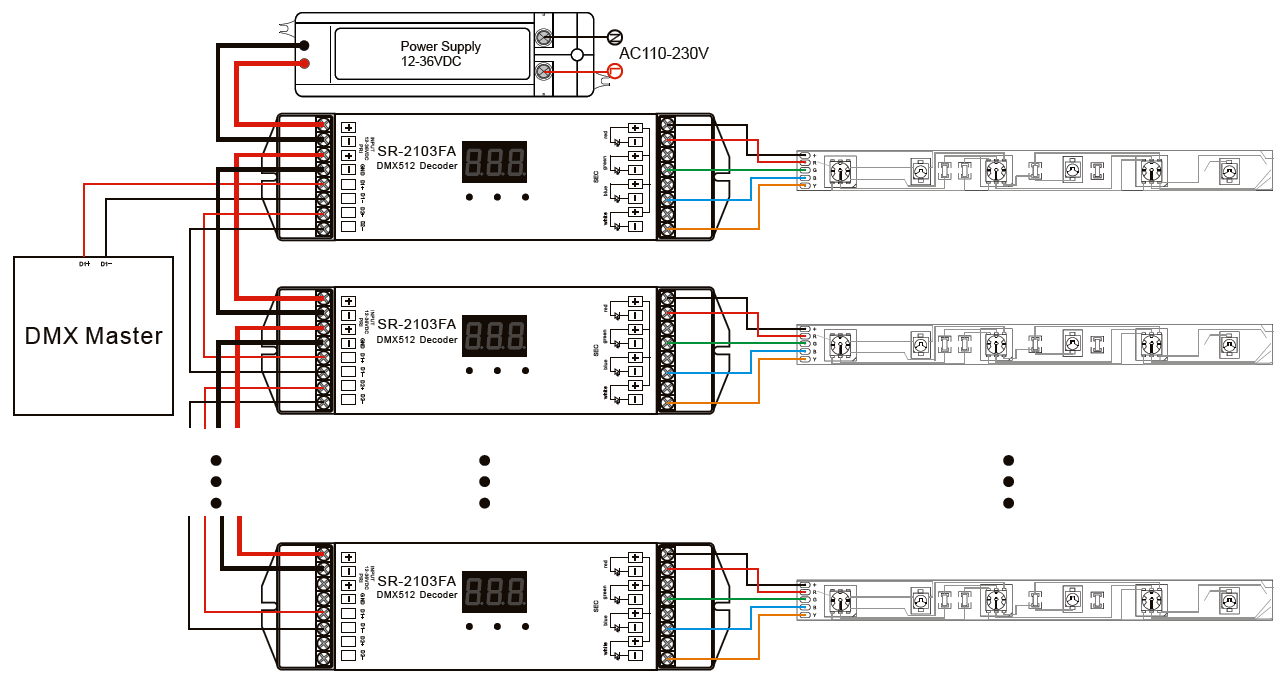

• To work with power repeater to expand output unlimitedly
