The SR-2103BEA is a constant voltage DMX512 decoder with 3 channel or 4 channel output selectable and 8A per channel output and available in 12VDC, 24VDC and 36VDC output, which can be switched between DMX decoder mode and stand-alone mode. Once under stand-alone mode, the DMX master can adjust brightness of each channel and enter the fading operation mode. 3 channel output or 4 channel output can be selectable. DMX address can be set freely and shown on the numeric digital display.
Key Features
- Constant voltage DMX512 decoder with 3 channel or 4 channel output selectable and 8A per channel output, available in 12VDC, 24VDC and 36VDC output
- DMX512 compliant control interface, DMX address can be set freely and shown on the digital numeric display
- Stand-alone mode and DMX512 decoder mode can be freely switched by buttons
- Once under stand-alone mode, the DMX master can adjust brightness of each channel and enter the fading operation mode
- Three-channel / Four-channel output selectable
- To work with power repeater to expand output unlimitedly
Specifications
Part No. | Input Voltage | Output Current | Output Power | Output Type | Dimension (mm) |
---|---|---|---|---|---|
SR-2103BEA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |

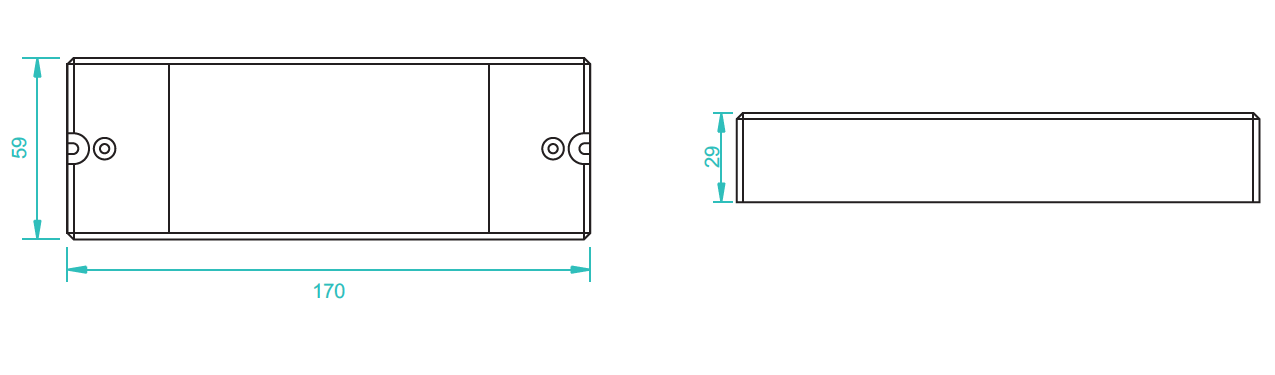

Product Dimension

Wiring Diagram

Coming soon
Download Center
To know further details of this product, please download the following user manual.
SR-2103BEA User Manual
