SRP-2007-50CC is a dimmable 50w led driver with 1-10v interface and 1 channel constant current output and adjustable current from 250ma to 1500ma by DIP switches, which enables it to be suitable for LED lights with different current. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The 50w LED driver is controlled via 1-10v control unit and can be compatible with universal 1-10v signal. 0-10v version is optional.
Key Features
- Dimmable LED driver, Max. output power 50W
- 1 channel constant current output, 250mA ~ 1500mA Adjustable by DIP switches
- Class Ⅱ power supply, full isolated plastic case
- Rubycon capacitors
- Built-in active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 87%

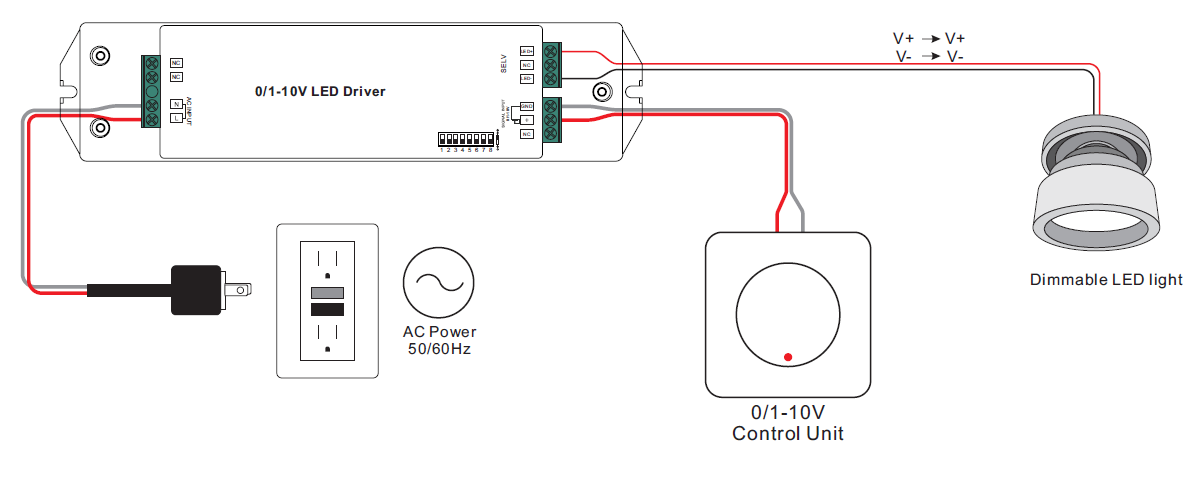

- Controlled via 1-10v control unit and can be compatible with universal 1-10v signal
- 0-10v version is optional
- To control single color LED lighting
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- IP20 rating, suitable for indoor LED lighting applications
Download Center
To know further details of this product, please download the following user manual.
SRP-2007-50CC User Manual
