- 4 Channels DMX 75W Dimmable Constant Voltage LED Driver SRP-2106-24-75CVF
SRP-2106-24-75CVF is an UL and ENEC approved DMX 75w dimmable constant voltage LED driver with 4 channels 24VDC output and 100-277VAC wide input. Power factor of the driver can be over 0.9 and efficiency is higher than 85%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. DMX channel quantity can be set as 1/2/3/4 via buttons, which enables the driver to control single color, tunable white, RGB/RGBW LED lighting. DMX addresses can be manually assigned via buttons and showed on digital display. Complying with DMX512(2008), DMX512-A, this DMX driver is compatible with universal DMX master controllers. UL and ENEC certification ensures high safety performance of the driver to be used worldwide.
Key Features
Part No. | Input Voltage | Output Voltage | Maximum Output Power | Output Current | Dimension (mm) |
---|---|---|---|---|---|
SRP-2106-24-75CVF | 100-277VAC | 24VDC | 75W | 3.12A max. | 64*244*32 |

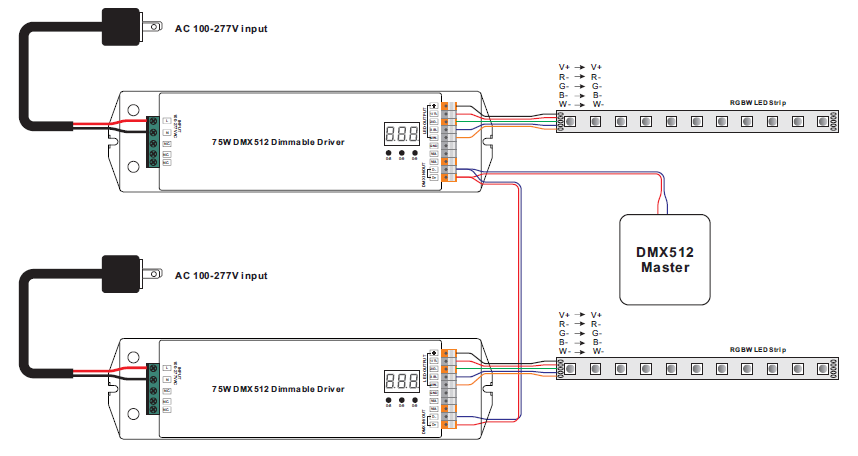

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-2106-24-75CVF User Manual
