- 4 Channels Constant Current DALI 75W Dimmable LED Driver SRP-2305-75CCF
SRP-2305-75CCF is an ENEC approved DALI 75w dimmable LED driver with 200-240VAC wide input and 4 channels PWM output. The output current is settable from 250mA to 1500mA by DIP switch on the driver. Power factor of the driver can be over 0.9 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. DALI address quantity can be set as 1/2/3/4 via buttons, which enables the driver to control single color, tunable white, RGB/RGBW LED lighting. DALI addresses can be manually assigned via buttons and showed on digital display or automatically assigned by DALI masters. Complying with IEC62386-101, 102, 207, this DALI driver is compatible with universal DALI masters. ENEC certification ensures high safety performance of the driver to be used worldwide.
Key Features
Part No. | Input Voltage | Output Current | Maximum Output Power | Output Voltage | Dimension (mm) |
---|---|---|---|---|---|
SRP-2305-75CCF | 200-240VAC | 250mA-1500mA | 75W | 8-48VDC | 64*244*32 |

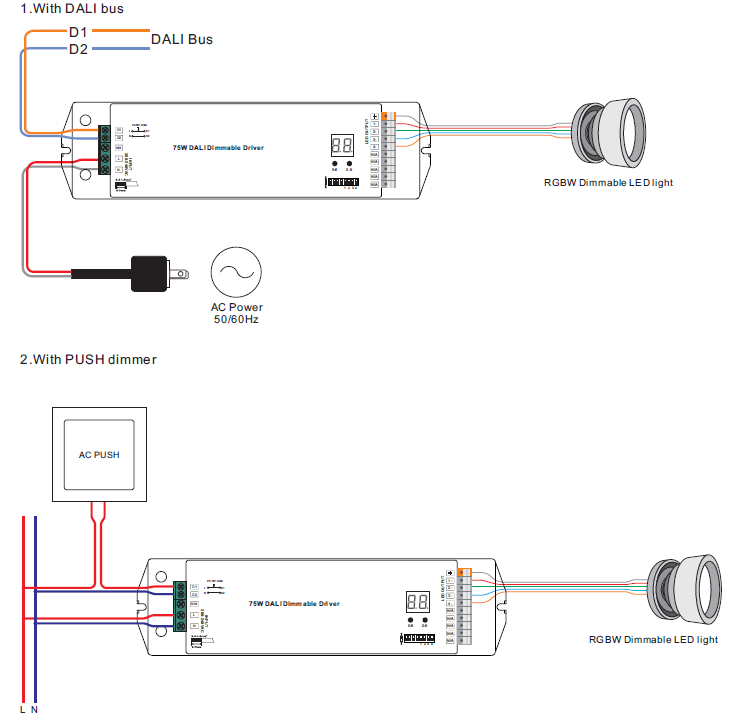

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-2305-75W-CCF User Manual
