- 2 Channels DMX 50W Dimmable Constant Voltage LED Driver SRP-2106-50W-CVT
SRP-2106-50W-CVT is a DMX 50w dimmable constant voltage LED driver with 2 channels 12VDC or 24VDC output, which enables it to be suitable for CCT LED lights with different voltage. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 85%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. 2 DMX addresses can be manually assigned via buttons and showed on digital display. Complying with DMX512(2008), DMX512-A, this DMX driver is compatible with universal DMX512 master controllers.
Key Features
Part No. | Input Voltage | Output Voltage | Maximum Output Power | Output Current | Dimension (mm) |
---|---|---|---|---|---|
SRP-2106-50W-12V-CVT | 200-240VAC | 12VDC | 50W | 4.16A max. | 50*210*32 |
SRP-2106-50W-24V-CVT | 200-240VAC | 24VDC | 50W | 2.08A max. | 50*210*32 |

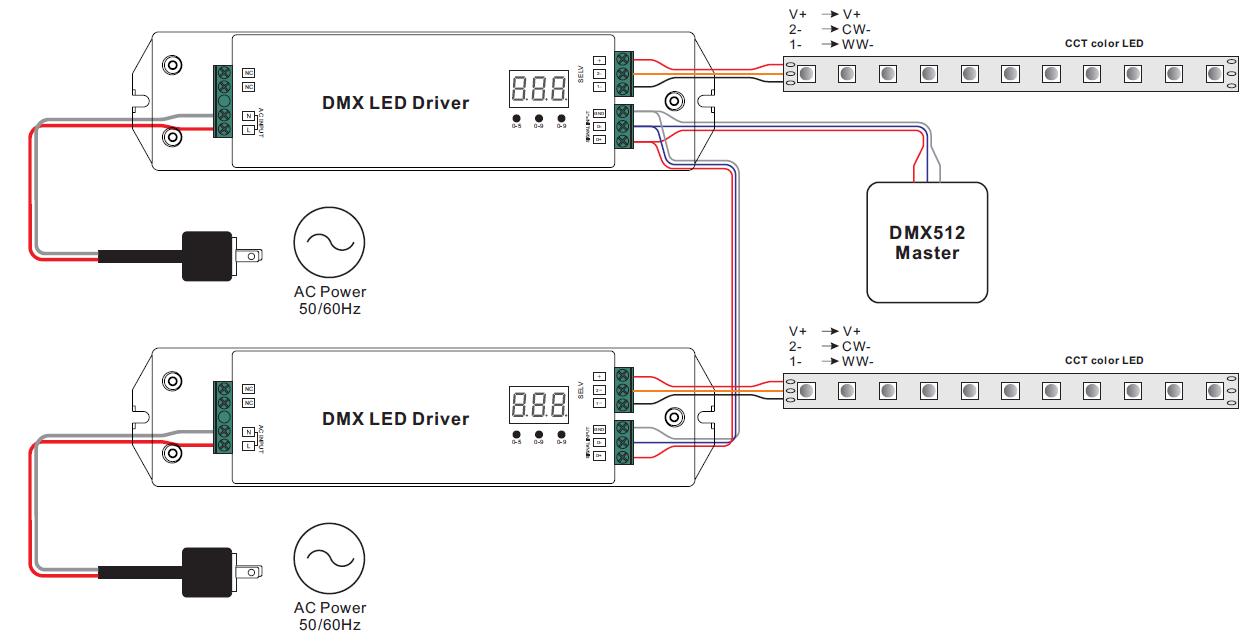

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-2106-50W-CVT User Manual
